ACU-TRAC Cantilever Rollers

The Superior Cantilever Roller System
Roller Systems for Cantilever Gates

Built for smooth performance, low maintenance, and long-term durability.
– Made in America-

Committed to producing quality precision parts on time at a competitive price.

ORDER NOW

UHMW Rollers

Quiet, durable rollers designed to reduce wear and perform in demanding conditions.

Stainless Steel Shaft

Corrosion-resistant 303 stainless steel shaft built for strength and longevity.

Sealed Greaseless Bearings

Smooth operation without ongoing grease maintenance.

Made for Cantilever Gates

Designed specifically for fence industry cantilever gate applications.

Why Choose Acu-Trac?

Acu-Trac roller systems are built to outperform traditional cast or steel wheel systems with quieter movement, less maintenance, and improved longevity for your gate system.

Our rollers are manufactured from UHMWPE (Ultra High Molecular Weight Polyethylene) — a high-performance plastic known for its exceptional strength and durability.

No Maintenance / No Grease

Strong and weather resistant

High Usage Ready

Extends Gate & Operator Life

Made In America

Key Features

Add an extra layer of protection to your cantilever gate system with Acu-Trac safety components designed to improve performance and reduce risk around moving roller assemblies.

Acu-Trac rollers are manufactured from UHMWPE (Ultra High Molecular Weight Polyethylene). This material is extremely durable, weather-resistant, and quieter than traditional cast or steel wheel systems.

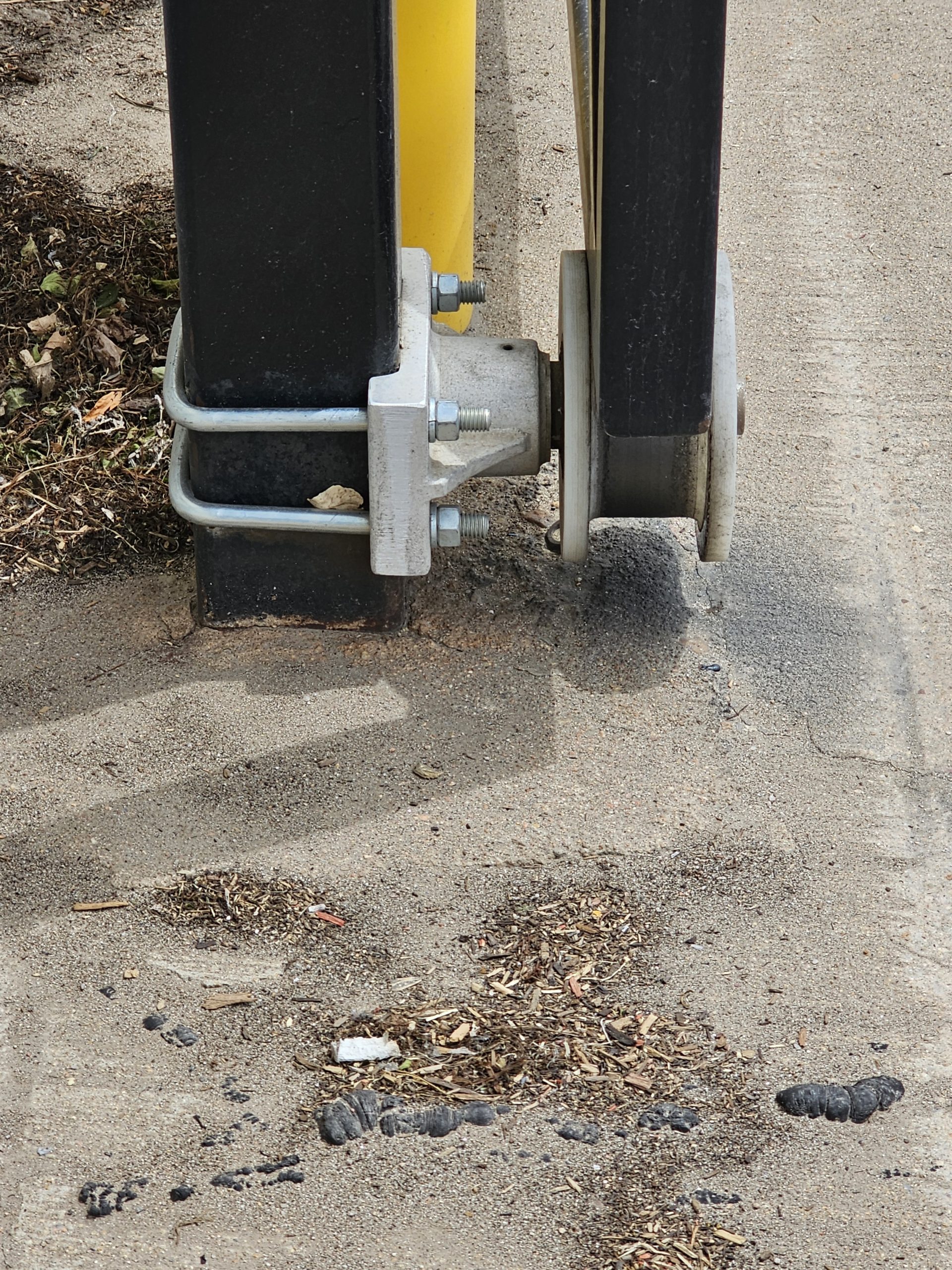

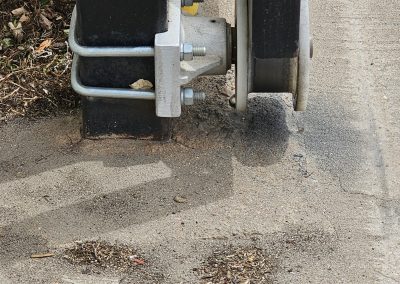

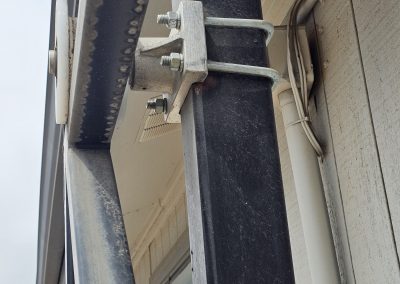

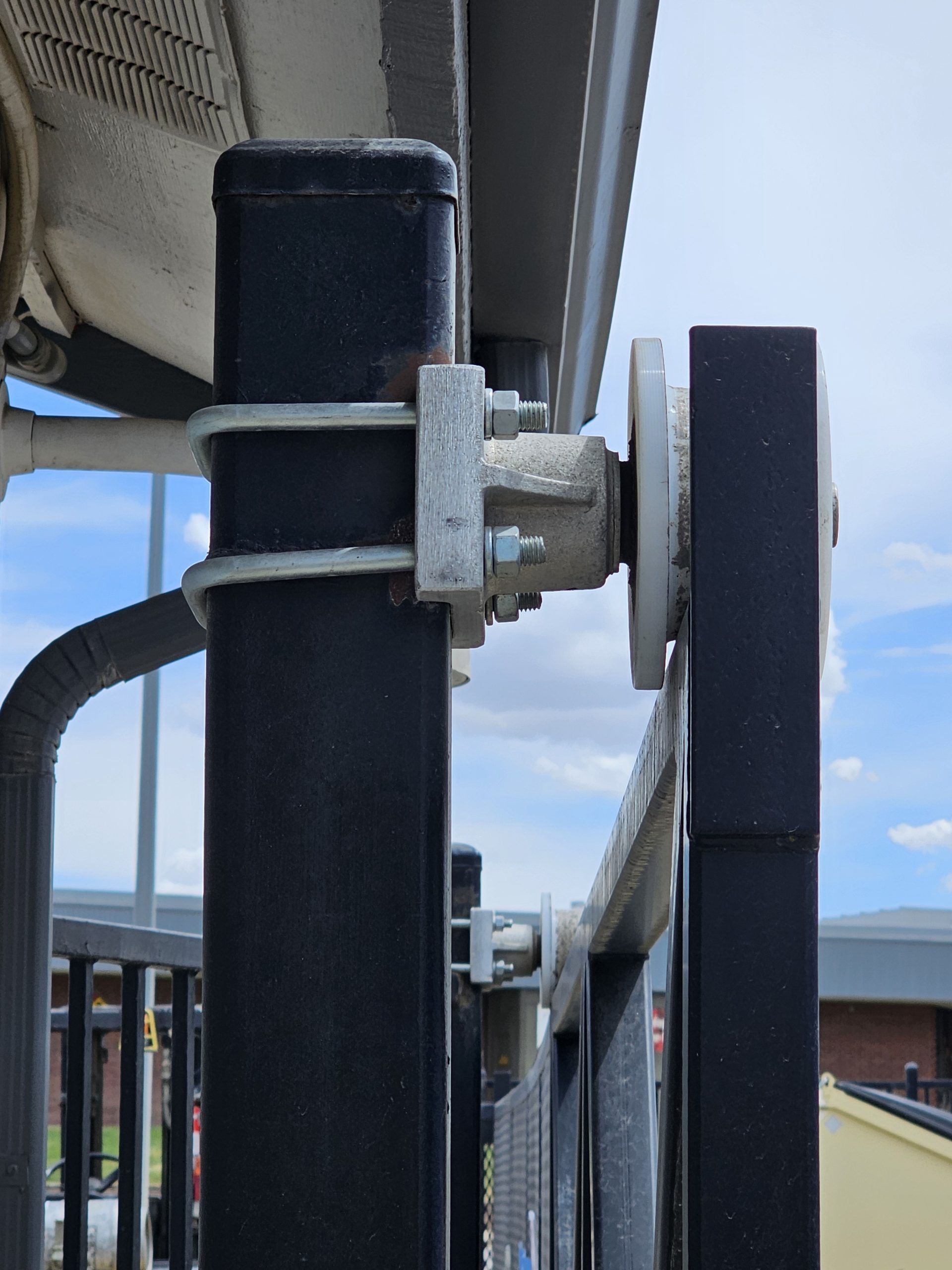

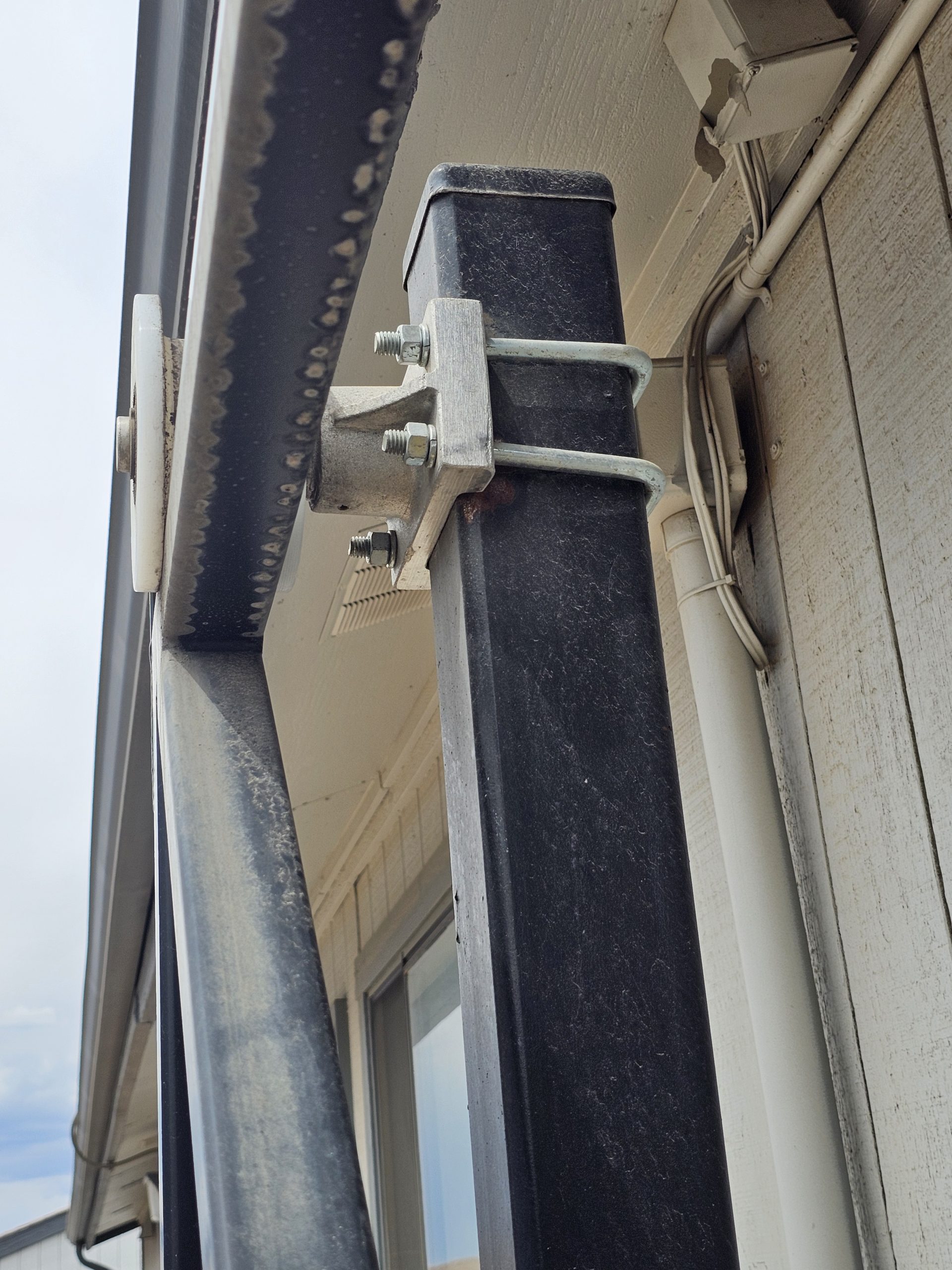

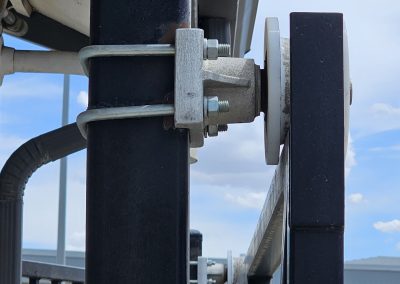

Each roller features sealed, grease-less bearings mounted on a corrosion-resistant 303 stainless steel shaft, secured within a precision-machined heavy-duty aluminum casting. The system attaches to posts using 1/2” steel U-bolts for secure installation.

Our roller system delivers industry-leading strength:

  • 12,000 lbs downward load capacity per roller assembly
  • 9000 lbs side load capacity per roller assembly

Product Options

Choose Your Roller Type

Select the configuration that matches your gate system and post style.

Place The Order

Place the order for your selected roller type.

Install With Confidence

Get a durable, low-maintenance roller system built for long-term performance.

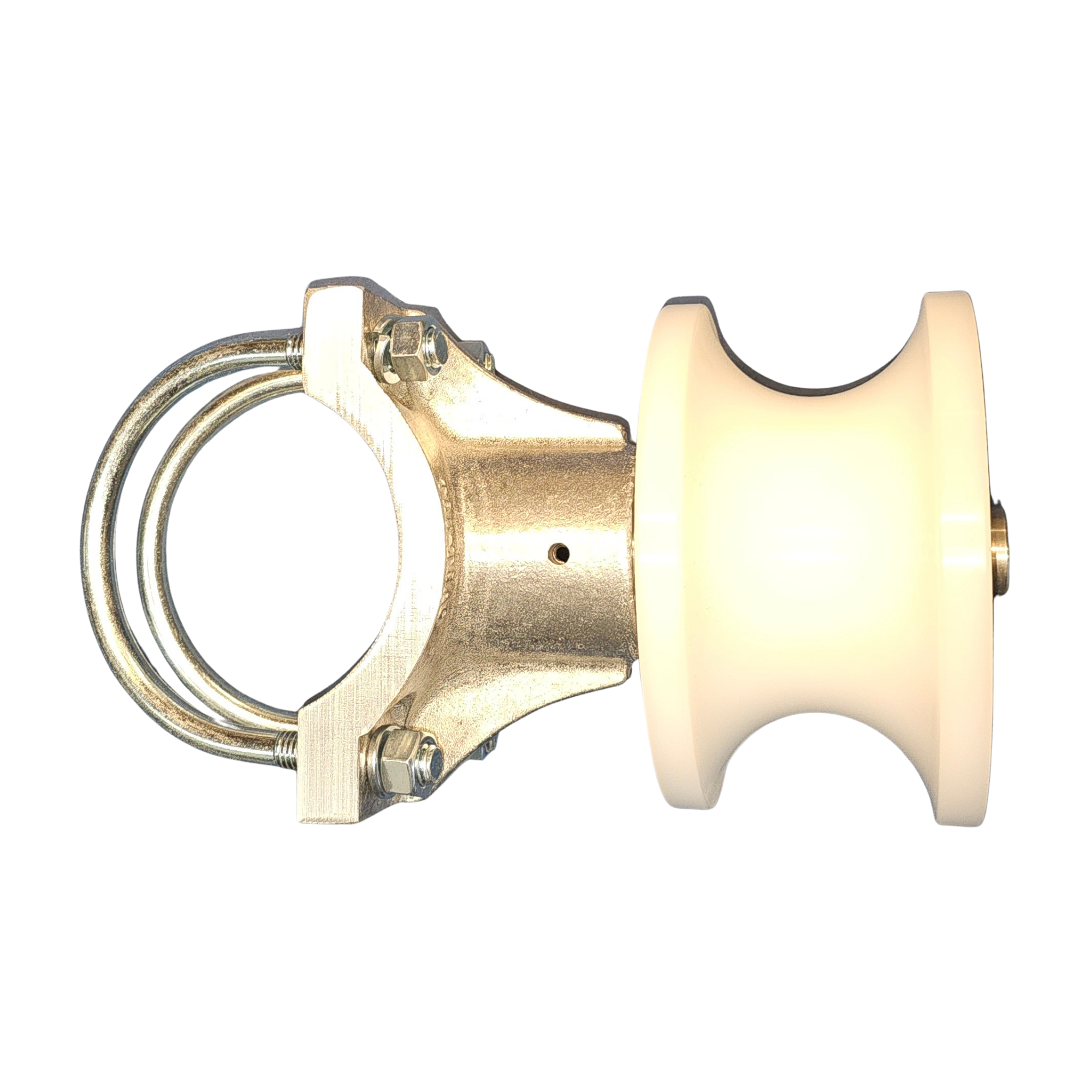

AT-4RR Cantilever Gate Roller
ASSEMBLY SHOWN
1 Set is required to do one gate install

4 Assemblies = 1 set

  • Mounts on a 4” ROUND post for a 2 3/8” ROUND gate frame.
  • 1 ea. Heavy duty cast aluminum precision machined base, strongest in the industry.
  • 1 ea. 6” Diameter precision machined roller made from UHMW (ultra-high-molecular-weight-polyethylene graphite impregnated) for strong, smooth, quiet operation.
  • 1 ea. 1 1/8” Diameter precision machined stainless steel shaft.
  • 2 ea. Sealed roller bearings.
  • 2 ea. 1/2”-13 Threaded round u-bolt with hardware.
Order Now

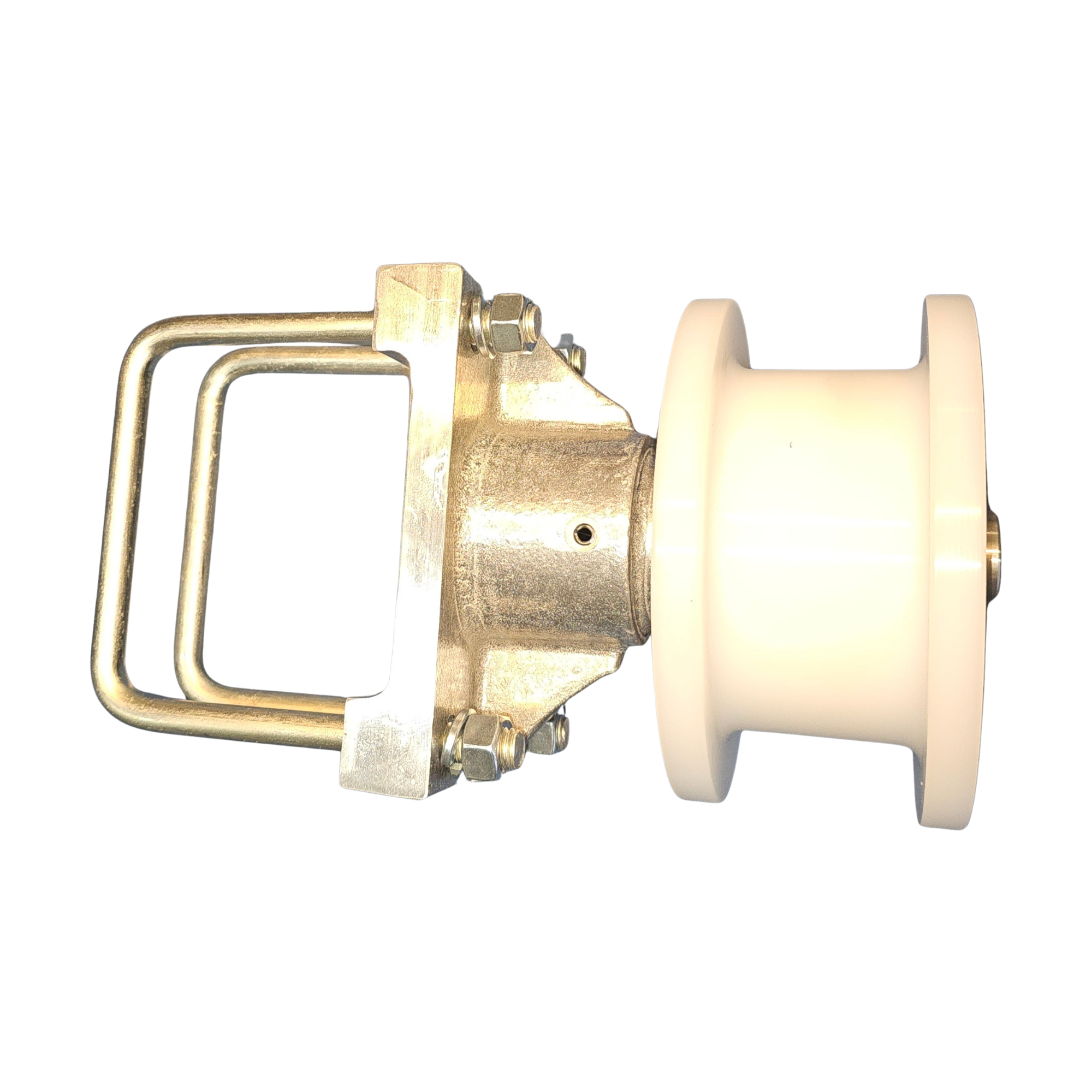

AT-4SS Cantilever Gate Roller

ASSEMBLY SHOWN
1 Set is required to do one gate install

4 Assemblies = 1 set

  • Mounts on a 4” SQUARE post for a 2” SQUARE gate frame.
  • 1 ea. Heavy duty cast aluminum precision machined base, strongest in the industry.
  • 1 ea. 6” Diameter precision machined roller made from UHMW (ultra-high-molecular-weight-polyethylene graphite impregnated) for strong, smooth, quiet operation.
  • 1 ea. 1 1/8” Diameter precision machined stainless steel shaft.
  • 2 ea. Sealed roller bearings.
  • 2 ea. 1/2”-13 Threaded square u-bolt with hardware.
Order Now

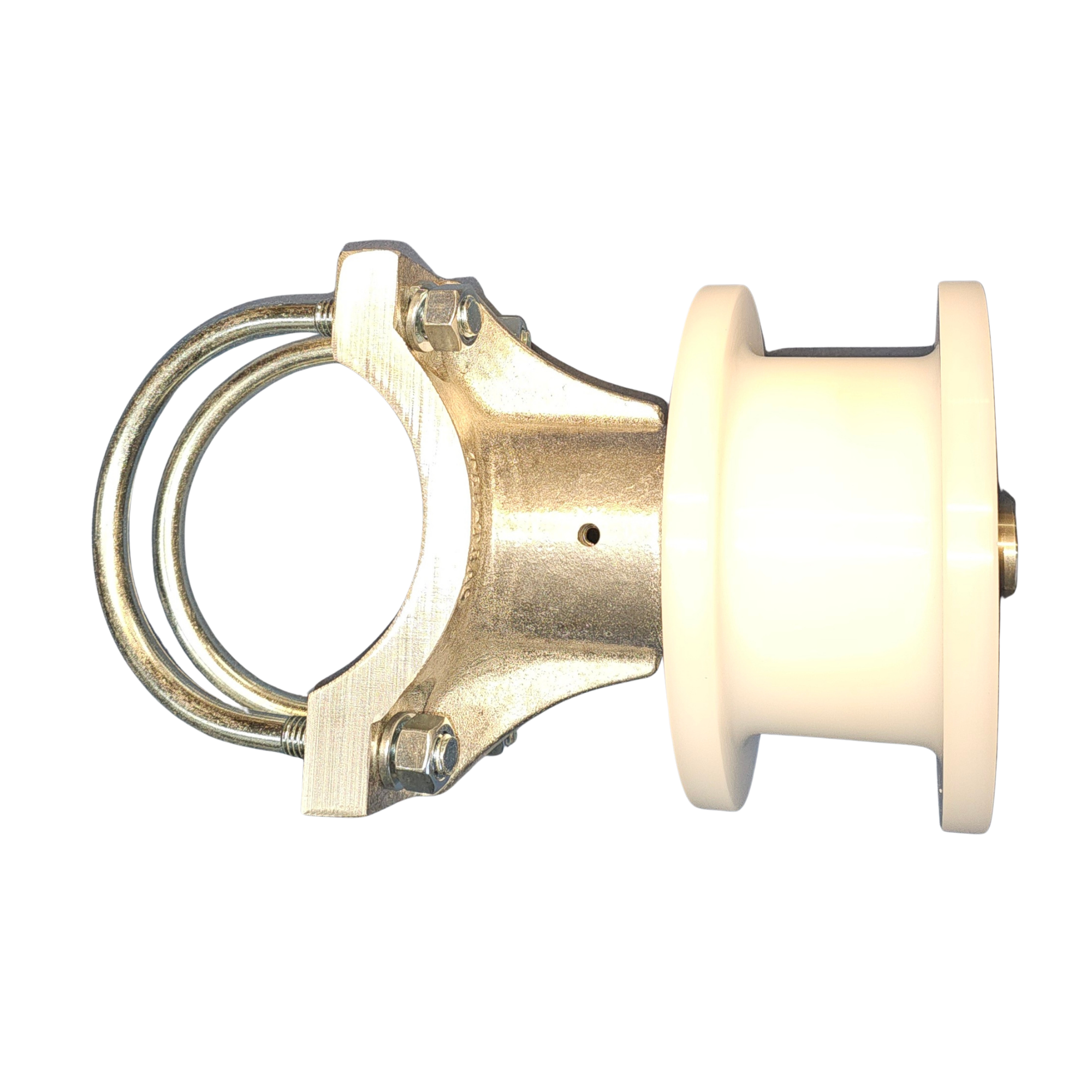

AT-4RS Cantilever Gate Roller

ASSEMBLY SHOWN
1 Set is required to do one gate install

4 Assemblies = 1 set

  • Mounts on a 4” ROUND post for a 2” SQUARE gate frame.
  • 1 ea. Heavy duty cast aluminum precision machined base, strongest in the industry.
  • 1 ea. 6” Diameter precision machined roller made from UHMW (ultra-high-molecular-weight-polyethylene graphite impregnated) for strong, smooth, quiet operation.
  • 1 ea. 1 1/8” Diameter precision machined stainless steel shaft.
  • 2 ea. Sealed roller bearings.
  • 2 ea. 1/2”-13 Threaded round u-bolt with hardware.
Order Now

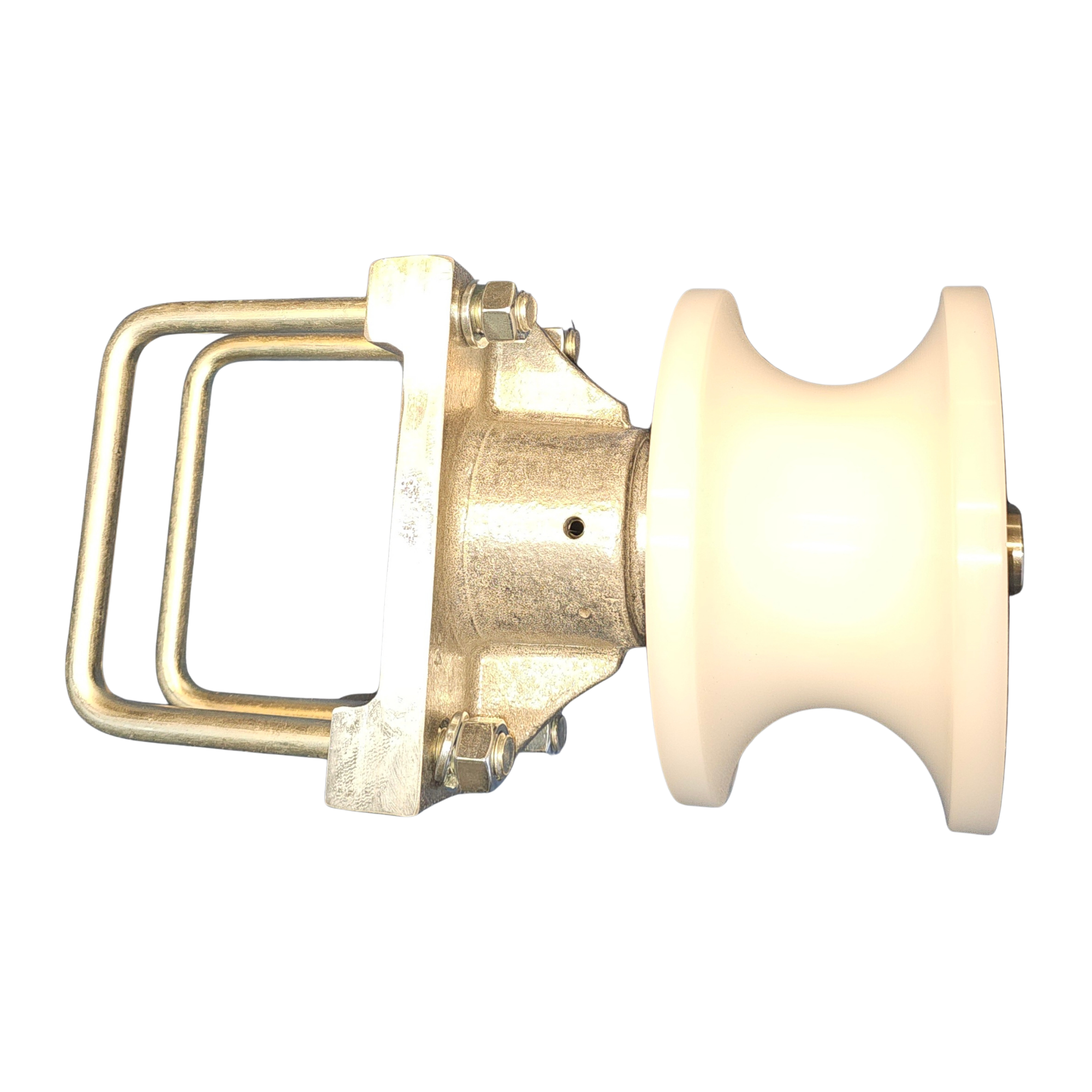

AT-4SR Cantilever Gate Roller

ASSEMBLY SHOWN
1 Set is required to do one gate install

4 Assemblies = 1 set

  • Mounts on a 4” SQUARE post for a 2 3/8” ROUND gate frame.
  • 1 ea. Heavy duty cast aluminum precision machined base, strongest in the industry.
  • 1 ea. 6” Diameter precision machined roller made from UHMW (ultra-high-molecular-weight-polyethylene graphite impregnated) for strong, smooth, quiet operation.
  • 1 ea. 1 1/8” Diameter precision machined stainless steel shaft.
  • 2 ea. Sealed roller bearings.
  • 2 ea. 1/2”-13 Threaded square u-bolt with hardware.
Order Now

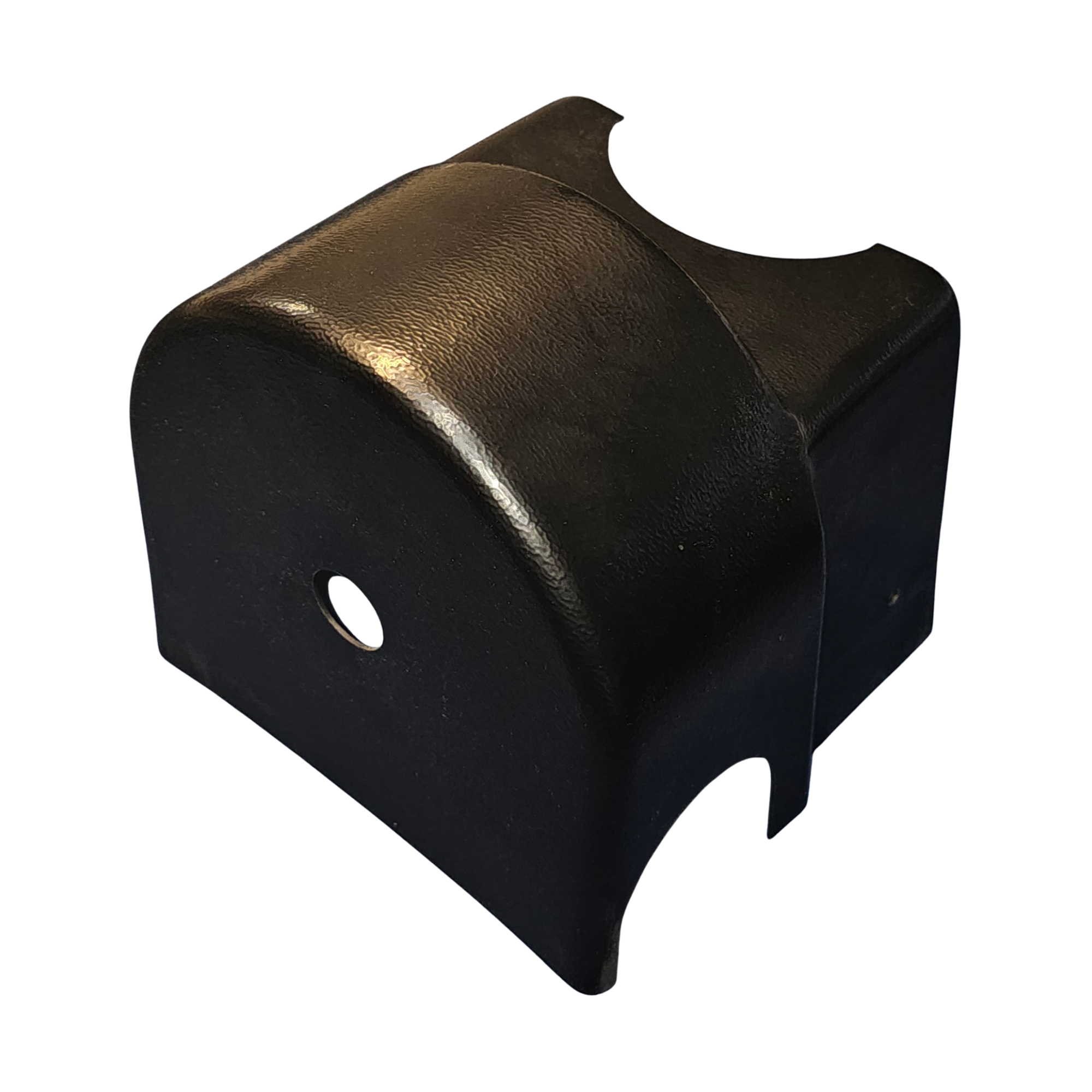

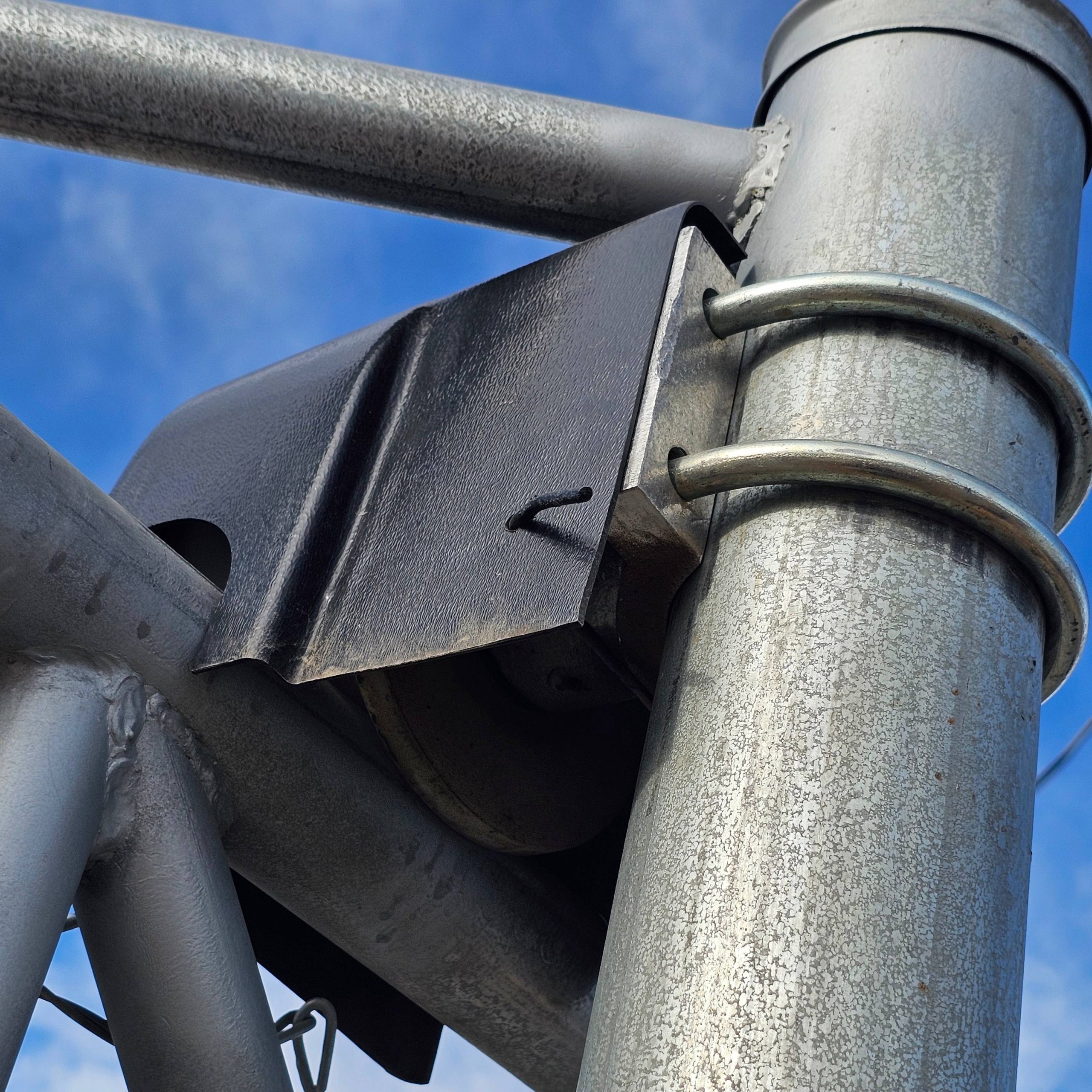

AT-4CVR Cantilever Gate Roller Cover

Vacuum molded from ABS plastic making a hard durable cover that conforms to the shape of the roller and covers all of the moving parts of the top rollers. The guards fit over the stainless steel shaft and secure in place over the casting using a 9 gauge tie wire for easy installation.

Order Now

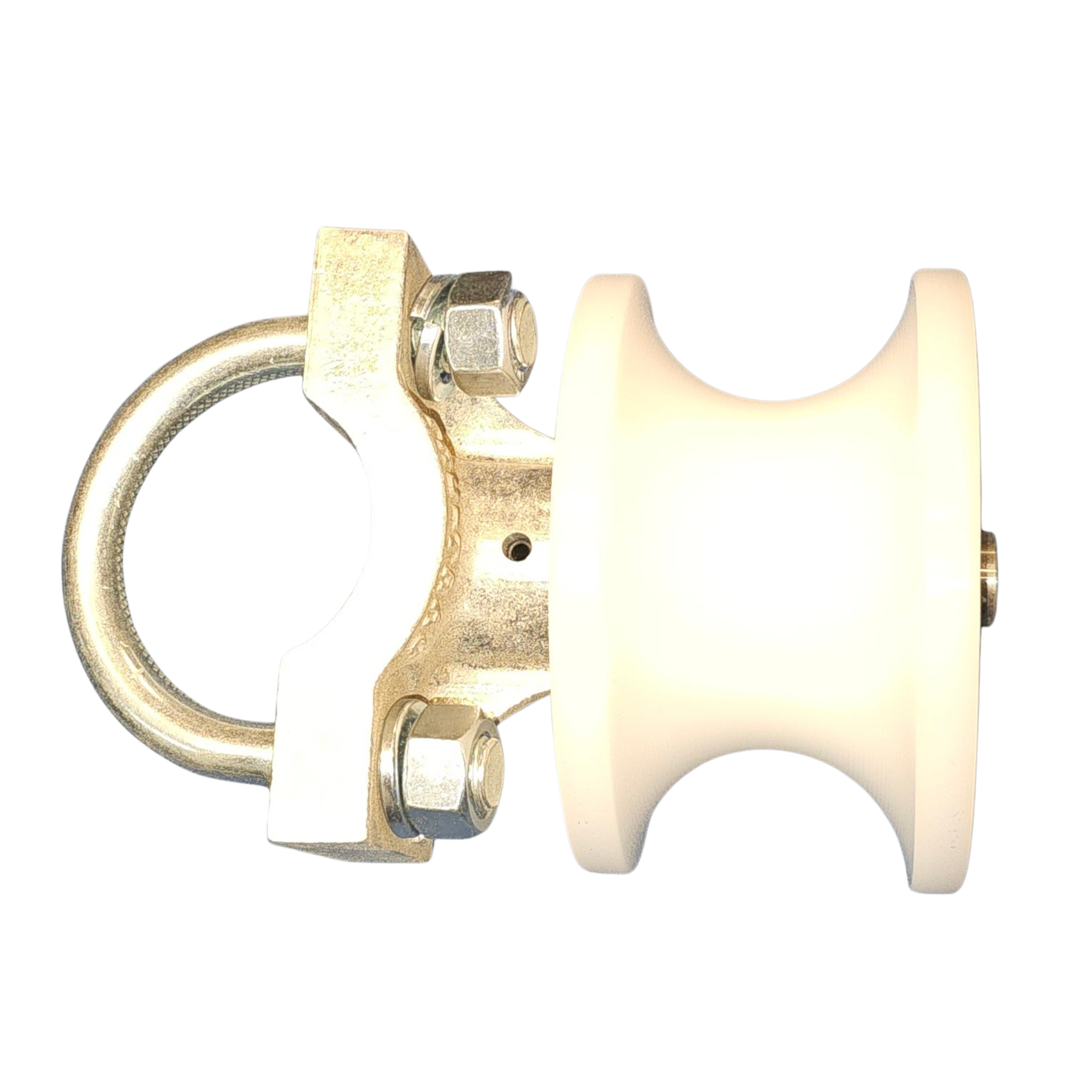

AT-2R4 Cantilever Gate Roller

ASSEMBLY SHOWN
1 Set is required to do one gate install

2 Assemblies = 1 set

  • Mounts on a 2” ROUND post for a 1 5/8” ROUND gate frame.
  • 1 ea. Heavy duty cast aluminum precision machined base.
  • 1 ea. 4” Diameter precision machined roller made from UHMW (ultra-high-molecular-weight-polyethylene graphite impregnated) for strong, smooth, quiet operation.
  • 1 ea. 5/8” Diameter precision machined stainless steel shaft.
  • 2 ea. Sealed roller bearings.
  • 1 ea. 1/2”-13 Threaded round u-bolt with hardware.
Order Now

AT-2R6 Cantilever Gate Roller

ASSEMBLY SHOWN
1 Set is required to do one gate install

2 Assemblies = 1 set

  • Mounts on a 2” ROUND post for a 1 5/8” ROUND gate frame.
  • 1 ea. Heavy duty cast aluminum precision machined base.
  • 1 ea. 6” Diameter precision machined roller made from UHMW (ultra-high-molecular-weight-polyethylene graphite impregnated) for strong, smooth, quiet operation.
  • 1 ea. 5/8” Diameter precision machined stainless steel shaft.
  • 2 ea. Sealed roller bearings.
  • 1 ea. 1/2”-13 Threaded round u-bolt with hardware.
Order Now

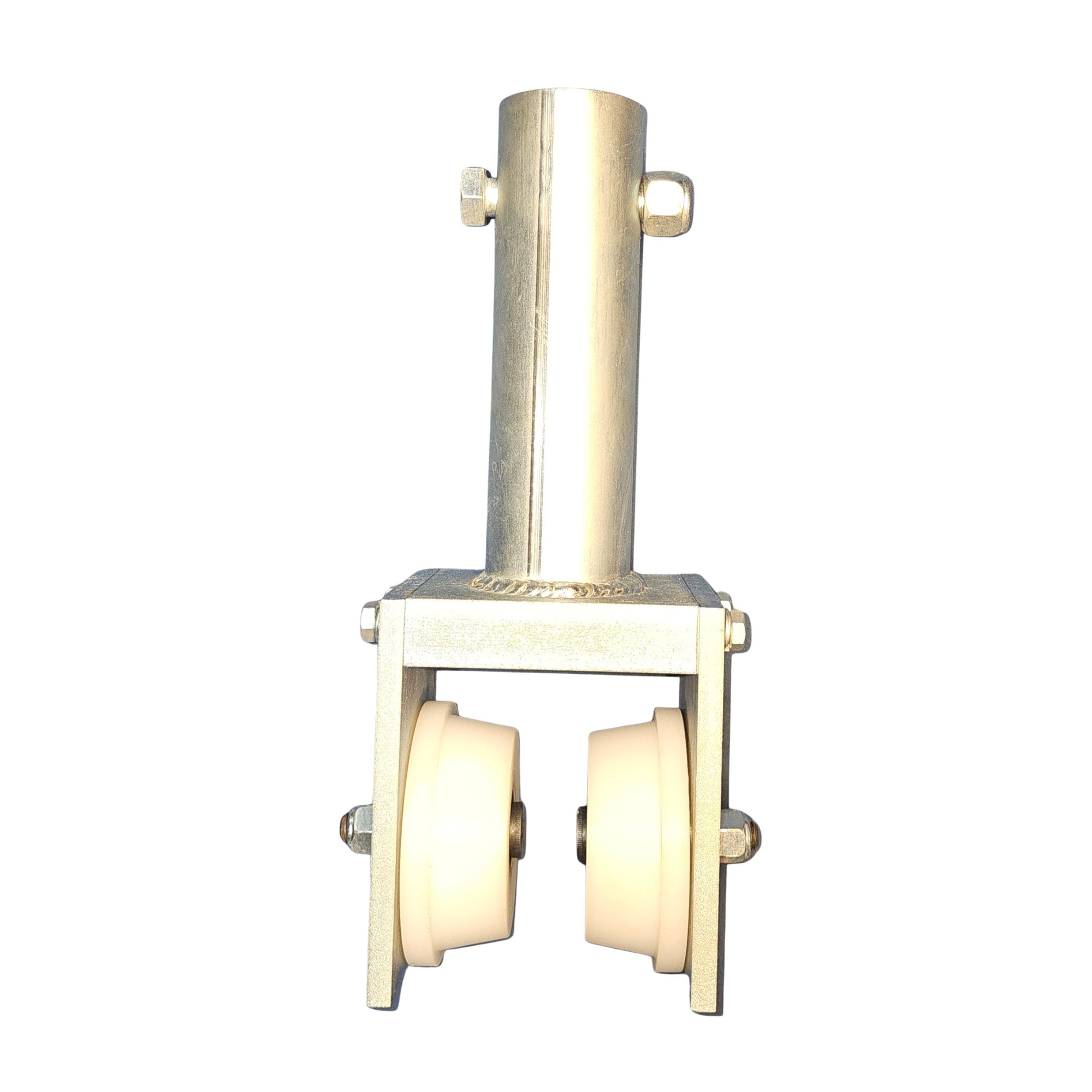

 AT-OT Overhead Slide Gate Trolley

  • 1 ea. Heavy duty zinc plated steel base.
  • 2 ea. 4” Diameter precision machined roller made from UHMW (ultra-high-molecular-weight-polyethylene graphite impregnated) for strong, smooth, quiet operation.
  • 2 ea. 5/8” Diameter precision machined stainless steel shaft.
  • 4 ea. Sealed roller bearings.
Order Now

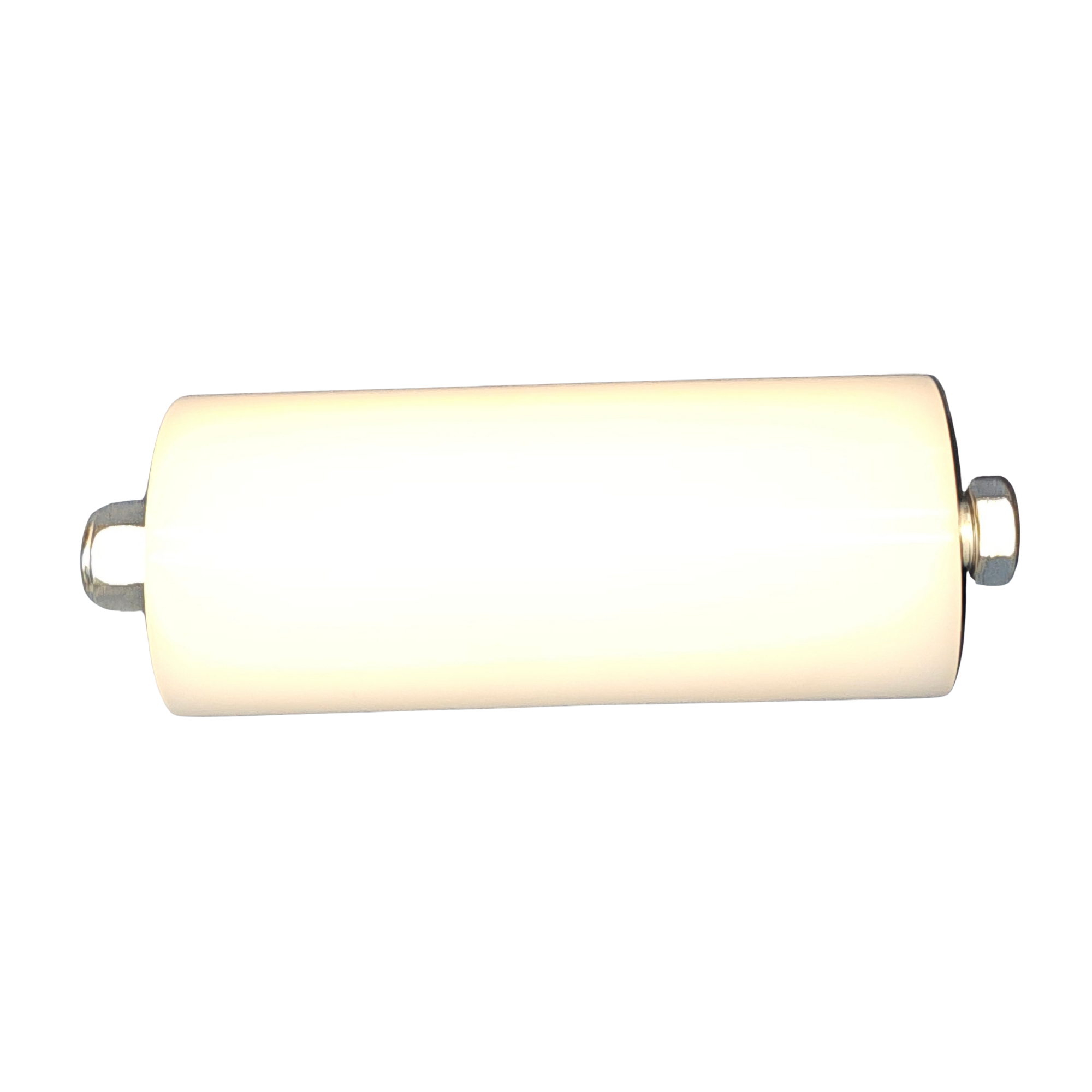

AT-GR Guide Roller

  • 1 ea. 2 1/2” Diameter x 6” long precision machined roller made from UHMW (ultra-high-molecular-weight-polyethylene graphite impregnated) for strong, smooth, quiet operation.
  • 2 ea. Sealed roller bearings.
  • 1 ea. 1/2”-13 Diameter x 7” bolt with lock nut.
Order Now
